K8s Security | KubeConfig

KubeConfig 概述

KubeConfig 是 K8s 客戶端(kubectl)與 API Server 通訊所依賴的設定檔。它包含:

  • 使用者身份驗證資訊(client certificate / token)
  • API Server 的連線位置與憑證
  • 多環境 context 的定義與切換

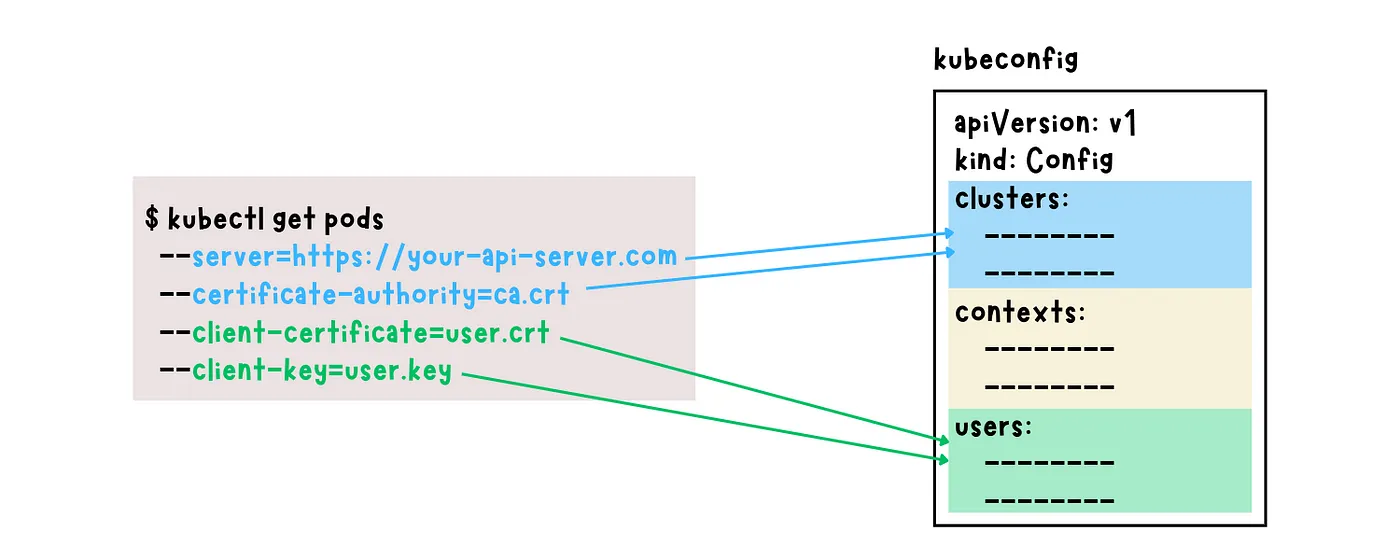

使用憑證直接存取 API Server

不透過 kubeconfig,可使用 curlkubectl 明確指定憑證:

1
2
3
4
curl https://my-kube-playground:6443/api/v1/pods \
--key admin.key \
--cert admin.crt \
--cacert ca.crt
1
2
3
4
5
kubectl get pods \
--server my-kube-playground:6443 \
--client-key admin.key \
--client-certificate admin.crt \
--certificate-authority ca.crt

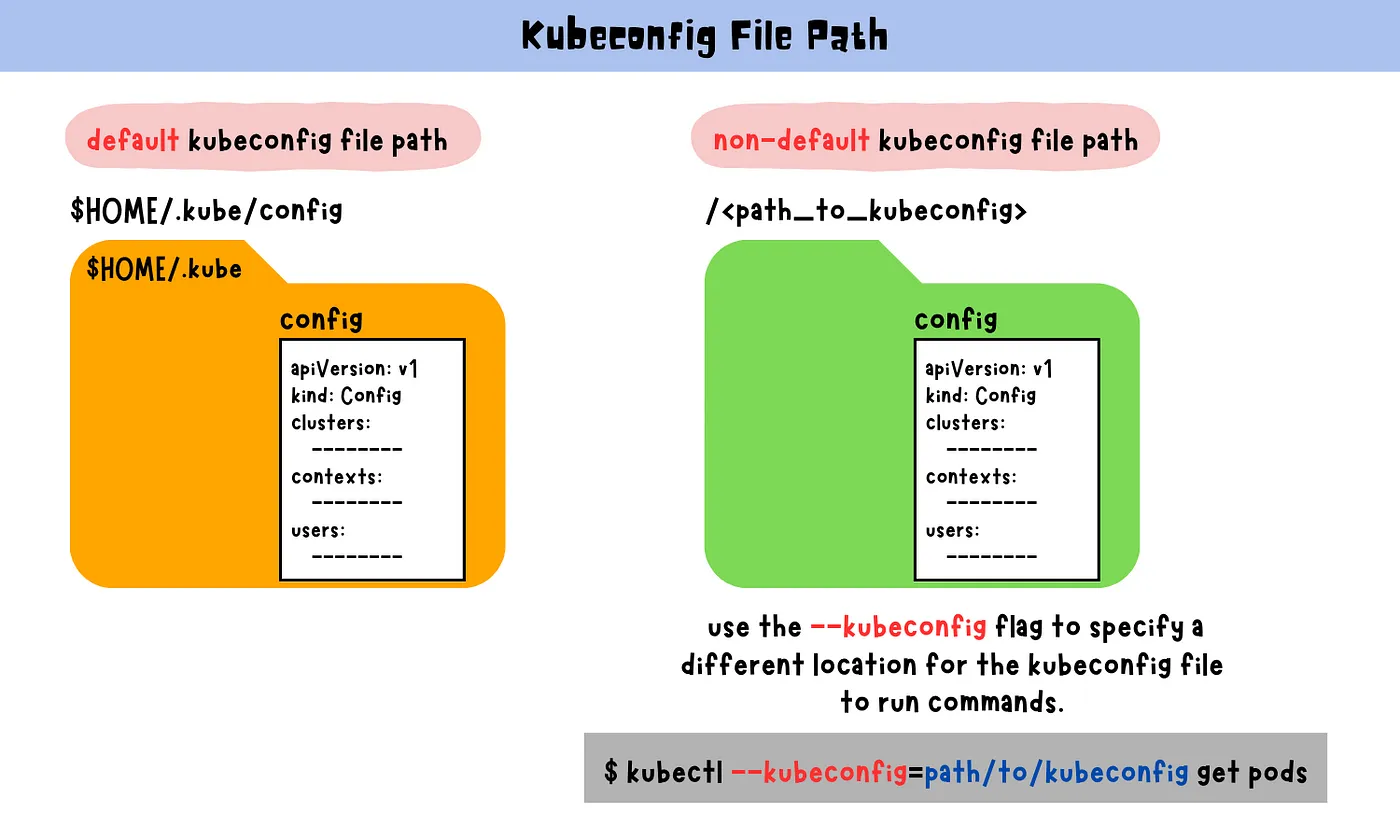

使用 kubeconfig 存取集群

預設情況下,kubectl 會從以下路徑載入設定:

1
$HOME/.kube/config

你也可以使用 –kubeconfig 指定其他配置檔:

1
2
kubectl get pods --kubeconfig=my-cluster-config.yaml
kubectl get pods # 預設使用 $HOME/.kube/config

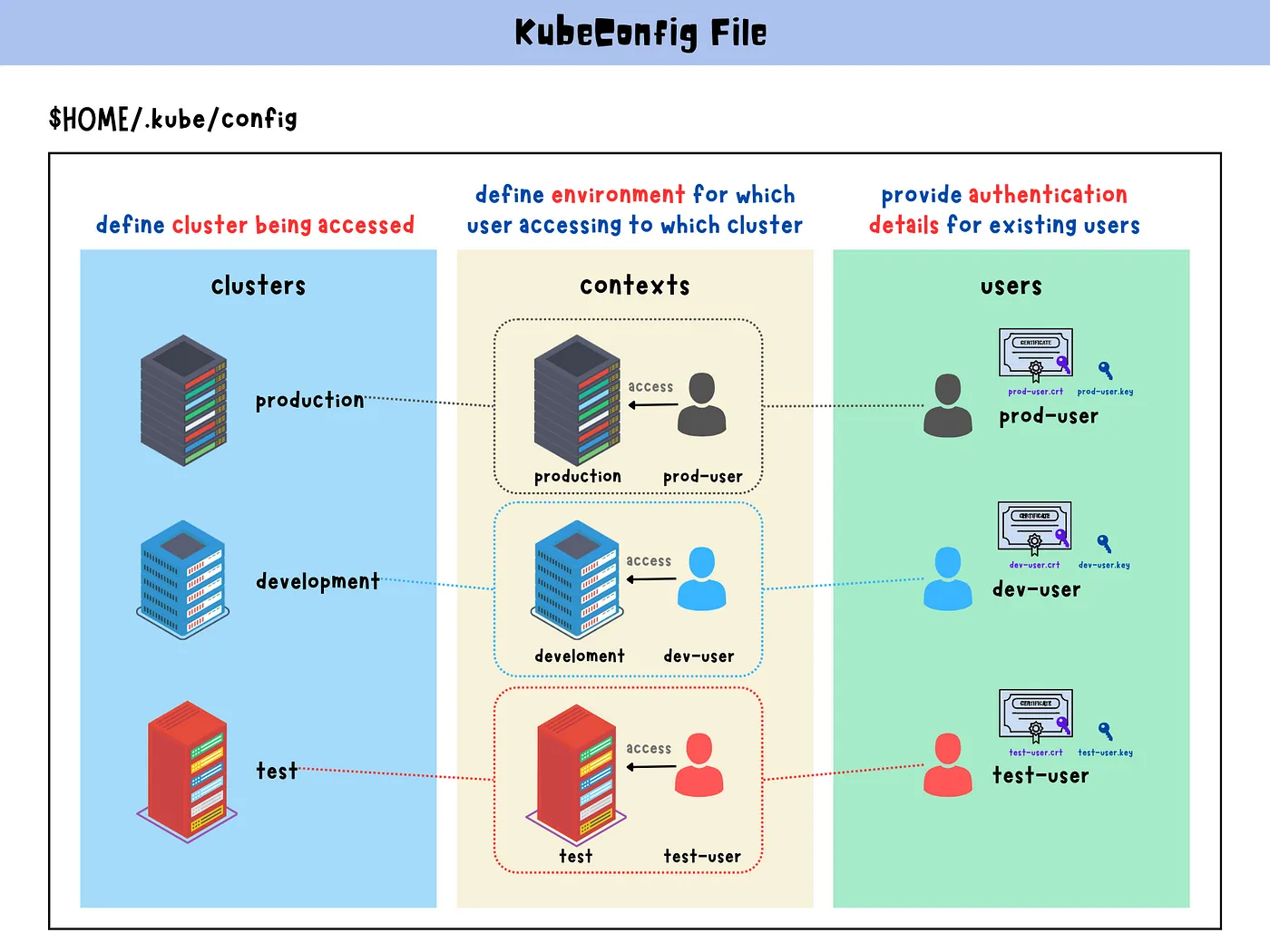

KubeConfig 結構說明

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
apiVersion: v1
kind: Config

current-context: dev-user@google

clusters:
- name: my-kube-playground
cluster:
certificate-authority: /etc/kubernetes/pki/ca.crt
server: https://my-kube-playground:6443
- name: [another-cluster]

contexts:
- name: my-kube-admin@my-kube-playground
context:
cluster: my-kube-playground
user: my-kube-admin
- name: [another-context]

users:
- name: my-kube-admin
user:
client-certificate: /etc/kubernetes/pki/users/admin.crt
client-key: /etc/kubernetes/pki/users/admin.key
- name: [another-user]

YAML 中的 current-context

問題 解答
current-context
可以放多個嗎?
❌ 不行,current-context 只能有一個。代表當前預設使用的 context。
current-context
不放會怎樣?
預設情況下 kubectl 會無法知道要使用哪一個 context,執行會出錯或需手動指定 --context

若要切換 current-context,請使用以下指令:

1
2
3
kubectl config use-context prod-user@production

kubectl config -h

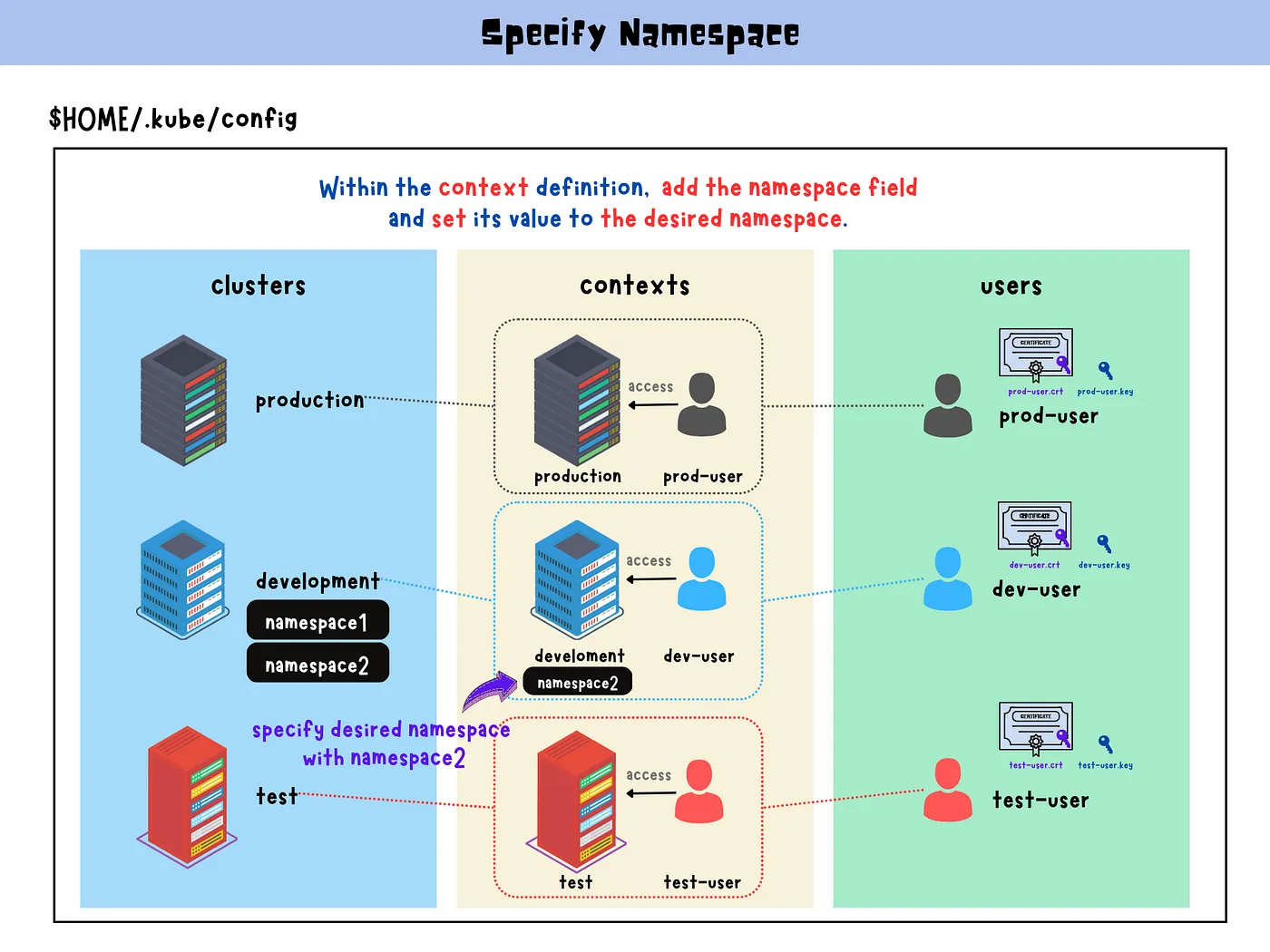

Context 與 Namespace 綁定

每個 context 可以綁定不同的命名空間,達到同一個 cluster 上的多租戶管理:

1
2
3
4
5
6
7
8
9
10
# ...

contexts:
- name: my-kube-admin@my-kube-playground
context:
cluster: my-kube-playground
user: my-kube-admin
namespace: finance # 預設 namespace

# ...

若 context 中未設定 namespace,則預設為 default。
在 kubeconfig YAML 結構中,namespace 只能出現在 contexts: 裡的 context 子欄位中

Namespace 優先權說明
若同時在 context 設定與 CLI 中指定 namespace,kubectl 會優先採用 CLI 的 --namespace 參數。

1
2
kubectl get pods --namespace=dev
# 覆蓋 kubeconfig 裡 context 的 namespace 設定

支援 base64 編碼憑證與憑證內嵌

你可以使用 certificate-authority-data 或 client-certificate-data 直接嵌入 base64 編碼的內容:

1
2
3
4
5
6
7
8
9
10
11
12
13
# ...

clusters:
- name: production
cluster:
certificate-authority-data: [base64 編碼的 ca.crt]
server: https://my-kube-playground:6443

users:
- name: my-kube-admin
user:
client-certificate-data: [base64 編碼的 admin.crt]
client-key-data: [base64 編碼的 admin.key]

產出 base64 編碼方式:

1
2
3
4
5
6
7
base64 -w 0 ca.crt       # -w 0 表示不換行
base64 -w 0 admin.crt
base64 -w 0 admin.key
# or
base64 ca.crt | tr -d '\n'
base64 admin.crt | tr -d '\n'
base64 admin.key | tr -d '\n'

常用指令彙總

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
# 查看目前的 KubeConfig 的設定內容
kubectl config view
kubectl config view --kubeconfig=my-cluster-config.yaml

# 使用不同的 config 檔
kubectl --kubeconfig=/path/to/my-cluster-config.yaml get pods

# 切換 context
kubectl config use-context dev-user@google

# 列出所有 context
kubectl config get-contexts

# 抓 context 名稱
kubectl config get-contexts -o name

# 設定預設 namespace
kubectl config set-context my-context --namespace=finance
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# 建立新的 context
kubectl config set-context dev@dev-cluster \
--cluster=dev-cluster \
--user=dev-user \
--namespace=dev-namespace

# 建立新的使用者(搭配 token 或 cert)
kubectl config set-credentials dev-user \
--client-certificate=./dev-user.crt \
--client-key=./dev-user.key

# 建立新的 cluster 設定
kubectl config set-cluster dev-cluster \
--server=https://dev.example.com:6443 \
--certificate-authority=./ca.crt

小結

  • kubeconfig 支援多個使用者、多個叢集、多組 context
  • current-context 只能存在一個,是預設操作對象
  • context 可綁定 cluster、user、namespace
  • 憑證可以使用路徑或 base64 方式設定
  • 使用 kubectl config 管理多環境操作非常方便
  • context 可指定預設 namespace,亦可在 CLI 使用 --namespace 臨時覆蓋。

Reference

  1. Kubernetes: Kubeconfig File
